Pall Acrodisc Syringe Filters with Supor Membrane
-
Parameter：
- Description
Pall Acrodisc Syringe Filters with Supor Membrane
Description
Syringe Filters with High Flow Rates and Low Protein Binding, Superior flow rates and higher throughputs than competitive devices, Pall Acrodisc Syringe Filters with Supor Membrane, Sterile Filtration.
Applications
0.1 and 0.2 um pore sizes provide sterilization of small volumes of buffers, culture media, and additives.
Acrodisc PF and Serum Acrodisc syringe filters are ideal for clarification/sterilization of viscous or particulate-laden solutions.
Use larger pore size filters for prefiltration and particulate removal.
Specifications
Materials of Construction
Filter Media: Supor membrane [hydrophilic polyethersulfone (PES)]
Serum Acrodisc Prefilter Media: Binder-free borosilicate glass
Acrodisc Housing:
13 mm: Polypropylene
25 and 32 mm: Modified acrylic
37 mm: Polypropylene
Serum Acrodisc Housing: ABS
Pore Size
0.1, 0.2, 0.45, 0.8, 1.2, and 5 um
Effective Filtration Area
13 mm: 1.0 cm2
25 mm: 2.8 cm2
32 mm: 5.8 cm2
37 mm: 7.5 cm2
Inlet/Outlet Connections
Female luer lock inlet, male slip luer outlet
Typical Hold-Up Volume
(with air purge)
13 mm: < 28 uL
25 mm: < 70uL
32 and 37 mm:<100 uL
Maximum Operating Temperature
55 °C (131 °F)
Maximum Operating Pressure
5.2 bar (520 kPa, 75 psi)
Typical Water Flow Rate
mL/min at 3.1 bar (310 kPa, 45 psi)
0.1 um, 25 mm: 35
0.1 um, 32 mm: 100
0.2 um, 13 mm: 22
0.2 um, 25 mm: 175
0.2 um, 32 mm: 490
0.45 um, 13 mm: 35
0.45 um, 25 mm: 300
0.45 um, 32 mm: 700
0.8 um, 13 mm: 150
0.8 um, 25 mm: 700
0.8/0.2 um, 25 mm: 145
0.8/0.2 um, 32 mm: 440
1.2 um, 32 mm: 1700
5 um, 32 mm: 1750
GF/0.2 um, 37 mm (Serum
Acrodisc Filter): 425
Endotoxin Level
< 0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test
Biological Safety
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo

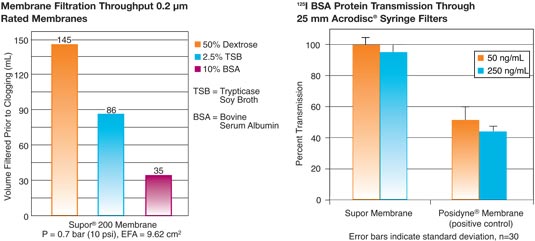

Acrodisc and Acrodisc PF syringe filters with 0.2 um Supor membrane were challenged with bovine serum or a bacterial culture (107 cfu/mL) at a constant pressure of 1.4 bar (140 kPa, 20 psi).
ordering information
Acrodisc Syringe Filters with Supor Membrane, Sterile
| Cat.No | Description |
| 4602 | ACRODISC 13MM 0.2UM SUPOR 75/PK STRL |
| 4604 | ACRODISC 13MM 0.45UM SUPOR 75/PK STRL |
| 4608 | ACRODISC 13MM 0.8UM SUPOR 75/PK STRL |
| 4611 | ACRODISC 25MM 0.1UM SUPOR 50/PK STRL |
| 4612 | ACRODISC 25MM 0.2UM SUPOR 50/PK STRL |
| 4614 | ACRODISC 25MM 0.45UM SUPOR 50/PK STRL |
| 4618 | ACRODISC 25MM 0.8UM SUPOR 50/PK STRL |
| 4650 | ACRODISC 32MM 5UM SUPOR PES 50/PK STRL |
| 4651 | ACRODISC 32MM 0.1UM SUPOR PES 50/PK STRL |
| 4652 | ACRODISC 32MM 0.2UM SUPOR PES 50/PK STRL |
| 4654 | ACRODISC 32MM .45UM SUPOR PES 50/PK STRL |
| 4656 | ACRODISC 32MM 1.2UM SUPOR PES 50/PK STRL |
Acrodisc PF Syringe Filters with Supor Membrane, Sterile
| Cat.No | Description |
| 4187 | ACRODISC 25MM .8/.2 UM SUPOR 50/PK STRL |
| 4658 | ACRODISC 32MM 0.8/0.2UM SUPOR 50/PK STRL |
Acrodisc Syringe Filter with Supor Membrane
| Cat.No | Description |
| 4504 | 25MM ACRODISC PF 0.8/0.2UM SUPOR 1000/PK |
| 4506 | 25MM ACRODISC 0.2UM SUPOR 1000/PK |
| 4508 | 25MM ACRODISC 0.45UM SUPOR 1000/PK |
| 4509 | 25MM ACRODISC 0.8UM SUPOR 1000/PK |
| 4653 | ACRODISC32 0.45UM N/S 1000/PK |
| 4660 | 32MM ACRODISC 1.2UM SUPOR 1000/PK |
| 4661 | 32MM ACRODISC 1.2/0.45UM SUPOR 1000/PK |
| 4662 | 32MM ACRODISC 5UM SUPOR 1000/PK |
Serum Acrodisc Syringe Filter with Supor Membrane
| Cat.No | Description |
| 4525 | ACRODISC, SERUM GF/.2UM SUPOR 20/PK STRL |
